Product Name:

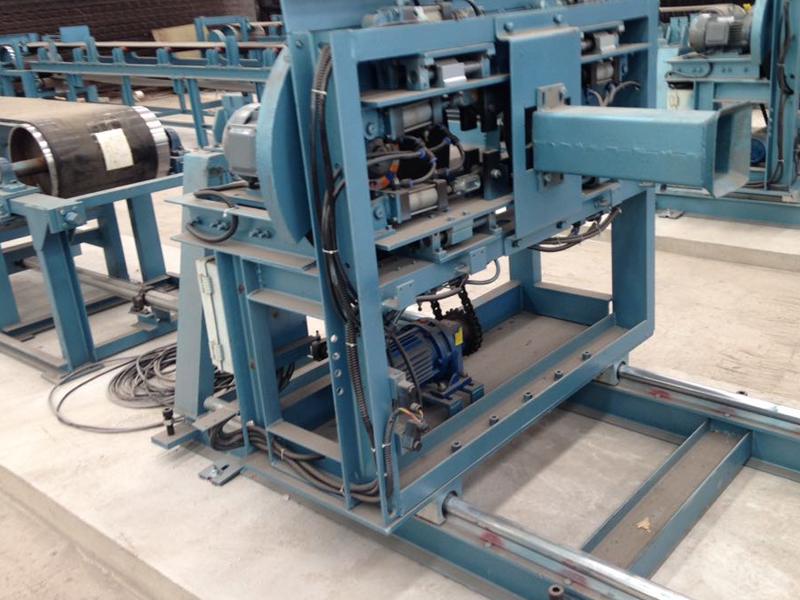

Small Square Pile Wire Cage Welding Machine
Material: steel
Features:
1. Our machine use the machine and man interface, the cage length, pitch, close winding can be reset into the Micro-computer. Easy to learn and operate.
2. The main machine use the oil immersed gear wheel driving system.
3. Adopt the high AC welding technology, make the electric circuit simple, low failure rate, and welding spot is more solid, also save electricity.
4. Variable frequency speed control system, longer using life.
5. Steel Spiral wire rolling tray, more fast and convenient.
Products Description:

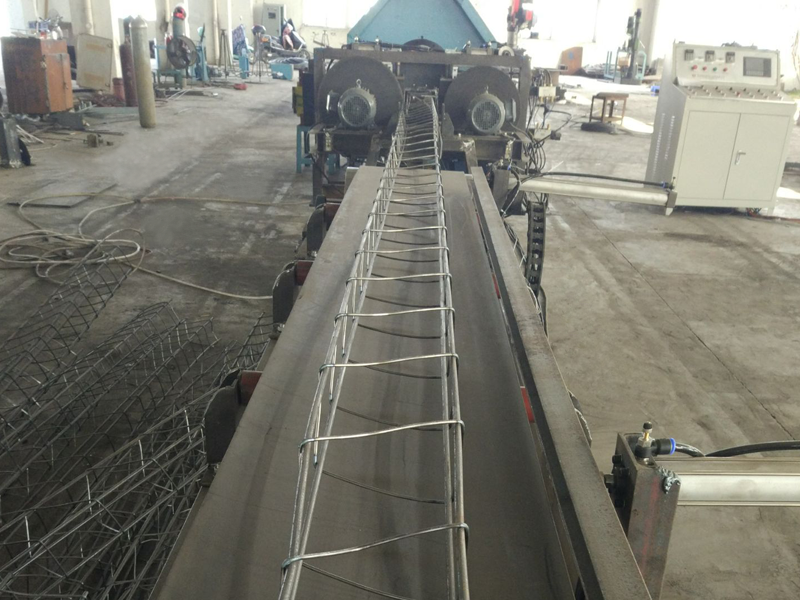

Small Square Pile Wire Cage Welding Machine is a special-purpose welder used to produce the high-strength concrete pipe pile reinforcement cages. The welder is widely applied to reinforcement cage welding by self-stressing and pre-stressing method and post-tensioning method.
Technical parameters:
Edge of square cage
150*150mm,175*175mm
Length of welded reinforcement cage
4M-15M
Number of longitudinal reinforcements
4
Diameter of longitudinal reinforcement
≤ø20MM
Diameter of hoop reinforcement
ø4- ø6
Driving power
8.4KW-15.2KW
Welding power
200KVA-300KVA
Controller
CNC controller
