Steel Bar Button Heading Machine
Keyword:
Steel Bar Button Heading Machine
隐藏域元素占位
- Product Detail
- Information
- contact us
-
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui
machinery manufacturing co;, all abroad (overseas) tasks and international businesswill be
undertaken by "amity care ".
We are manufacturers of centrifugal spinning machine ,mould ,heading machine ,cutting
machine,cage welding machine , tension jack for pre-stress .feeding machine for different
capacity ,weave welding machine ,sheet cutting machine etc. we also can supply setting up
a new factory full line service . We have already exported various kinds of concrete pile ,
pole and pipe concern making machines to overseas countries and regions such as indonesia
,parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
-

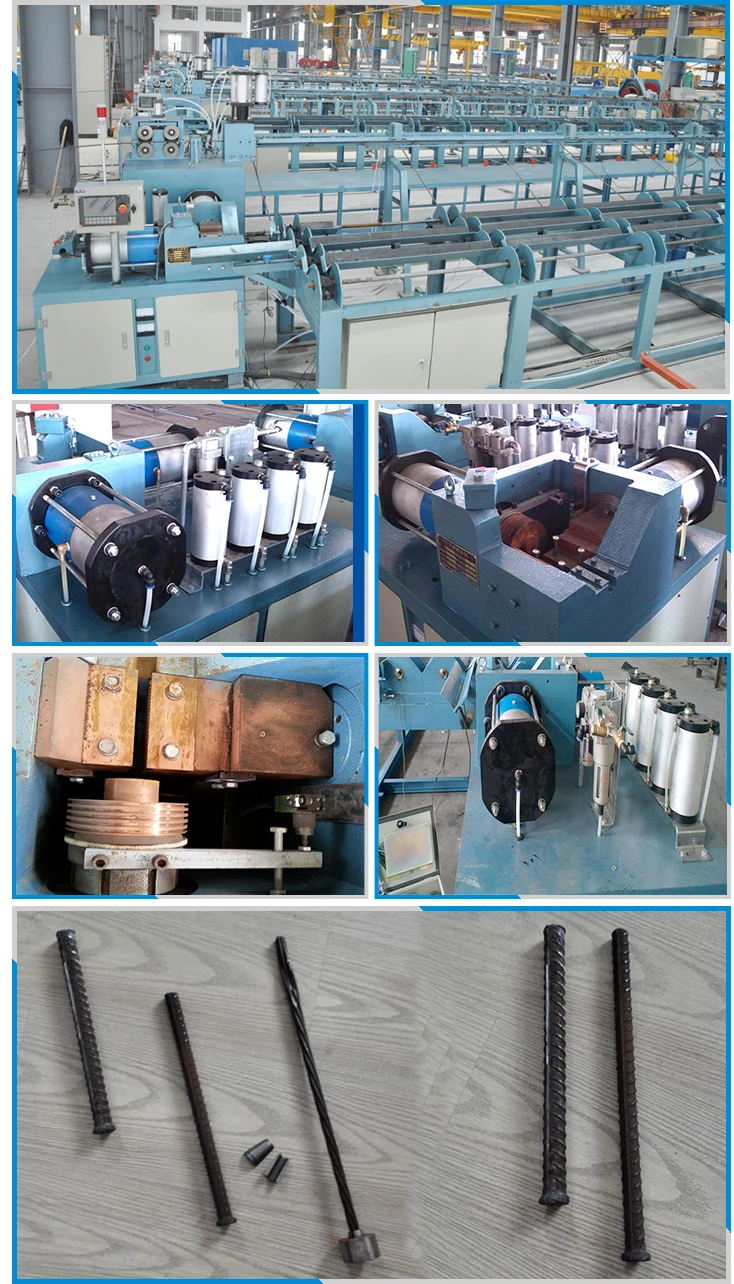

Product Name:Steel Bar Button Heading MachineSize: 1.1×1.2×0.9mMaterial: steelFeatures:1. cover an area of an area small2. power consumption province, heading 50-60 per kilowatt hour3. using compressed air and gas consumption is small4. each heading for steel side5. every heading for the first time about 7-16 seconds6. bar diameter change just change procedures and jig and stroke7. the heading machine points left hand and right hand, satisfy the upset head on both ends8.Eight cost-effective9. order delivery cycle is short10. heading strength loss is less than 5%11. heading at temperature 630 ℃ to 750 ℃12. suitable for domestic and foreign steel, heading no crack, no crack pipe13. Can and my factory production of cutting machine and pipe pile welding machine14. Master easy, easy to operate15. Time is short maintenance replacement deviceApplications: Pre-stress concrete pile makingProducts Description:The auto bar moving machine matched with cutter and heading machine together, achieve to auto cutting, heading and moving bar away way .NC controller, mote adopts VFD, accurate speed, stably work, handleand Automatic way change any time, it can work in any where, easy installation, energy-efficient, after sale service with commercial cost.Technical parameters:
Rated capacity 15KVA Max.clamping force 50T when the air pressure is 7.2kg/cm² Max.upsetting force 50T when the air pressure is 7.2kg/cm² Diameter of bar Φ7.1mm, Φ9.0mm, Φ10.7mm, Φ12.6mm Same-specification operation
direction
left and right direction The strength loss of heading reinforcement <5% Biggest heating current 7500 a size 1250 * 1180 * 1180
input voltage AC380V plus or minus 5%, 50HZ, three phase four wire system
Air MAX 7.2 kg/cm squared
